NetSuite Custom Fields

5min

You can find the below customFieldList field name in all NetSuite Objects, use it to pass the custom fields list as a part of any create/update request.
Field Name
Date Type
Description
customFieldList
﻿CustomFields﻿﻿
Custom Fields and their values.
﻿
Let's see how to add the custom fields in the request and what format the data is to be given:
CustomFields
Field Name
Data Type
Description
customField
﻿CustomFieldInfo﻿[]
List of CustomField Info
CustomFieldInfo
Field Name
Data Type
Description
fieldType*﻿
String
Specify the Data Type of a Custom Field.
First, know what is the NetSuite Custom Field Type of the Custom Field, so we can see what fieldType value is to be selected from the Custom Field Types﻿.
internalId
String
Internal ID of the NetSuite Custom Field.
scriptId*﻿
String
NetSuite Custom Field API Name
value
String
The value of the Custom Field.
Required and returned for all the custom fields other than “select” (fieldType)
valueLookup
﻿LookupRecord﻿﻿
The Internal ID of the Custom Lookup/Picklist Field.
Required and returned for the fieldType “select”
﻿

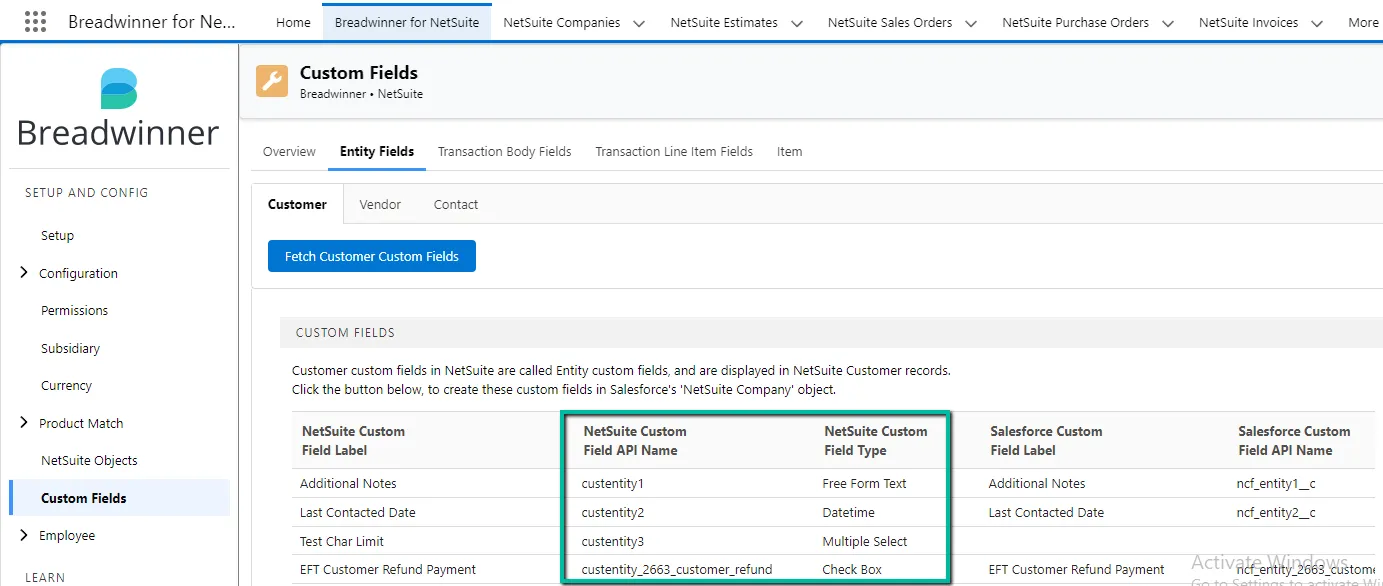

The values of NetSuite Custom Field Type (helps in knowing the fieldType) and the NetSuite Custom Field API Name (scriptId) can be known either by logging into NetSuite or going to the Custom Fields Tab on the Breadwinner for NetSuite page in Salesforce in case of Standard NetSuite Objects.
NetSuite Custom Fields for Standard NetSuite Objects
﻿
Custom Field Types
NetSuite Field Type
fieldType Value
Value
Date
date
The date value is accepted and returned as a Unix timestamp in seconds.
DateTime
date
The date-time value is accepted and returned as a Unix timestamp in seconds.
List Record (Lookup)
select
Internal ID of the NetSuite record or List element
Integer Number
long
﻿
Decimal Number
double
﻿
Currency
double
﻿
Percent
double
﻿
Check Box
boolean
TRUE/FALSE
Free Form Text
string
﻿
Text Area
string
﻿
Long Text
string
﻿
Email Address
string
Email format
Hyperlink
string
Domains & Websites
Below is an example of constructing the Customer custom fields as a part of the request:
Request Part
//  Create a Map to store all the data of a Customer
Map<String, Object> nsCustomer = new Map<String, Object>();
//  Initializing the Customer Custom Fields
    List<Object> custCustomFieldList = new List<Object>();

    // 1. Check Box custom fields
    Map<String, Object> custCustomField1 = new Map<String, Object>();
        custCustomField1.put('fieldType', 'boolean');
        custCustomField1.put('scriptId', 'custentity_naw_trans_need_approval');
        custCustomField1.put('value', 'true');
        custCustomFieldList.add(custCustomField1);

    // 2. Free Form Text, Text Area, Long Text, Email Address, and Hyperlink custom fields
    Map<String, Object> custCustomField2 = new Map<String, Object>();
        custCustomField2.put('fieldType', 'string');
        custCustomField2.put('scriptId', 'custentity_my_brn');
        custCustomField2.put('value', 'U72200MH2009PLC123456');
        custCustomFieldList.add(custCustomField2);

    // 3. Date and DateTime custom fields
    Map<String, Object> custCustomField3 = new Map<String, Object>();
        custCustomField3.put('fieldType', 'date');
        custCustomField3.put('scriptId', 'custentity_document_date');
        custCustomField3.put('value', '1628091060');
        custCustomFieldList.add(custCustomField3);

    // 4. Integer Number custom fields
    Map<String, Object> custCustomField4 = new Map<String, Object>();
        custCustomField4.put('fieldType', 'long');
        custCustomField4.put('scriptId', 'custentity_stc_daysuntilexpiry');
        custCustomField4.put('value', '7');
        custCustomFieldList.add(custCustomField4);

    // 5. Decimal Number, Currency, Percent custom fields
    Map<String, Object> custCustomField5 = new Map<String, Object>();
        custCustomField5.put('fieldType', 'double');
        custCustomField5.put('scriptId', 'custentity_stc_discountpercent');
        custCustomField5.put('value', '76.89');
        custCustomFieldList.add(custCustomField5);

    // 6. List Record/Lookup custom fields
    Map<String, Object> custCustomField6 = new Map<String, Object>();
        custCustomField6.put('fieldType', 'select');
        custCustomField6.put('scriptId', 'custentity_rating');
        custCustomField6.put('valueLookup', new Map<String, Object>{'internalId'=>'2'});
        custCustomFieldList.add(custCustomField6);

    // 7. custom segment fields
    Map<String, Object> custCustomField7 = new Map<String, Object>();
        custCustomField7.put('fieldType', 'select');
        custCustomField7.put('scriptId', 'cseg_lead_source');
        custCustomField7.put('valueLookup', new Map<String, Object>{'internalId'=>'2'});
        custCustomFieldList.add(custCustomField7);

//  Adding the Customer Custom Fields
    nsCustomer.put('customFieldList', new Map<String, Object>{'customField'=>custCustomFieldList});
//  Create a Map to store all the data of a Customer
Map<String, Object> nsCustomer = new Map<String, Object>();
//  Initializing the Customer Custom Fields
    List<Object> custCustomFieldList = new List<Object>();

    // 1. Check Box custom fields
    Map<String, Object> custCustomField1 = new Map<String, Object>();
        custCustomField1.put('fieldType', 'boolean');
        custCustomField1.put('scriptId', 'custentity_naw_trans_need_approval');
        custCustomField1.put('value', 'true');
        custCustomFieldList.add(custCustomField1);

    // 2. Free Form Text, Text Area, Long Text, Email Address, and Hyperlink custom fields
    Map<String, Object> custCustomField2 = new Map<String, Object>();
        custCustomField2.put('fieldType', 'string');
        custCustomField2.put('scriptId', 'custentity_my_brn');
        custCustomField2.put('value', 'U72200MH2009PLC123456');
        custCustomFieldList.add(custCustomField2);

    // 3. Date and DateTime custom fields
    Map<String, Object> custCustomField3 = new Map<String, Object>();
        custCustomField3.put('fieldType', 'date');
        custCustomField3.put('scriptId', 'custentity_document_date');
        custCustomField3.put('value', '1628091060');
        custCustomFieldList.add(custCustomField3);

    // 4. Integer Number custom fields
    Map<String, Object> custCustomField4 = new Map<String, Object>();
        custCustomField4.put('fieldType', 'long');
        custCustomField4.put('scriptId', 'custentity_stc_daysuntilexpiry');
        custCustomField4.put('value', '7');
        custCustomFieldList.add(custCustomField4);

    // 5. Decimal Number, Currency, Percent custom fields
    Map<String, Object> custCustomField5 = new Map<String, Object>();
        custCustomField5.put('fieldType', 'double');
        custCustomField5.put('scriptId', 'custentity_stc_discountpercent');
        custCustomField5.put('value', '76.89');
        custCustomFieldList.add(custCustomField5);

    // 6. List Record/Lookup custom fields
    Map<String, Object> custCustomField6 = new Map<String, Object>();
        custCustomField6.put('fieldType', 'select');
        custCustomField6.put('scriptId', 'custentity_rating');
        custCustomField6.put('valueLookup', new Map<String, Object>{'internalId'=>'2'});
        custCustomFieldList.add(custCustomField6);

    // 7. custom segment fields
    Map<String, Object> custCustomField7 = new Map<String, Object>();
        custCustomField7.put('fieldType', 'select');
        custCustomField7.put('scriptId', 'cseg_lead_source');
        custCustomField7.put('valueLookup', new Map<String, Object>{'internalId'=>'2'});
        custCustomFieldList.add(custCustomField7);

//  Adding the Customer Custom Fields
    nsCustomer.put('customFieldList', new Map<String, Object>{'customField'=>custCustomFieldList});
﻿
﻿

Field Name	Date Type	Description
customFieldList	CustomFields	Custom Fields and their values.

Field Name	Data Type	Description
customField	CustomFieldInfo[]	List of CustomField Info

Field Name	Data Type	Description
fieldType*	String	Specify the Data Type of a Custom Field. First, know what is the NetSuite Custom Field Type of the Custom Field, so we can see what fieldType value is to be selected from the Custom Field Types.
internalId	String	Internal ID of the NetSuite Custom Field.
scriptId*	String	NetSuite Custom Field API Name
value	String	The value of the Custom Field. Required and returned for all the custom fields other than “select” (fieldType)
valueLookup	LookupRecord	The Internal ID of the Custom Lookup/Picklist Field. Required and returned for the fieldType “select”

NetSuite Field Type	fieldType Value	Value
Date	date	The date value is accepted and returned as a Unix timestamp in seconds.
DateTime	date	The date-time value is accepted and returned as a Unix timestamp in seconds.
List Record (Lookup)	select	Internal ID of the NetSuite record or List element
Integer Number	long
Decimal Number	double
Currency	double
Percent	double
Check Box	boolean	TRUE/FALSE
Free Form Text	string
Text Area	string
Long Text	string
Email Address	string	Email format
Hyperlink	string	Domains & Websites
